Standard
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX8, IEC60884-1, IEC60335-1, IEC60598-1.
Application

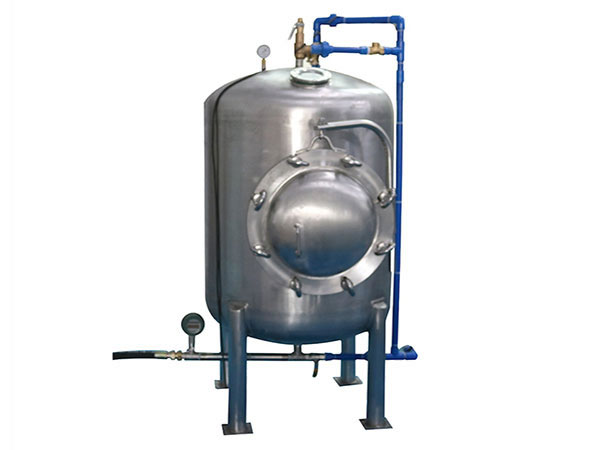

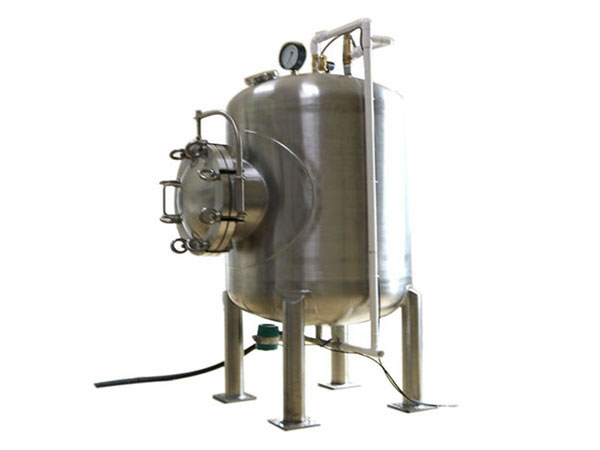

The water tightness pressure tester is designed for the assessment of enclosures and sealing elements and whether they can ensure good performance of equipment and components.
Test Sample
Products with IPX8 degree waterproof test.
Feature
1. Entire tank adopts SUS304# stainless steel because it will not corrode and will retain its water tightness for a long time.

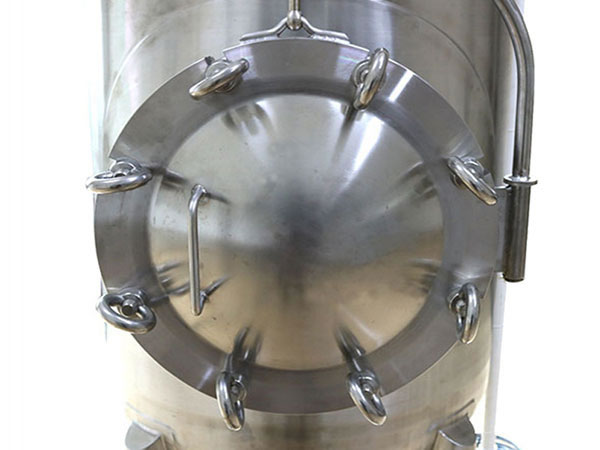

2. The pot cover is rotated and lifted by the screw thread, it can rotate and move away from the hole after lifting. (When pressure is greater than 50m depth test, you must use special flange lock to lock the cover)
3. The whole tank surface blasting treatment, smooth and beautiful.
Especificaciones técnicas
| Tanque de presión | Tanque de acero inoxidable de 0.8 metros de diámetro y 1 metro de altura. |
| Rango para ajuste de presión | Valor ajustable de 0 a 5bar. |

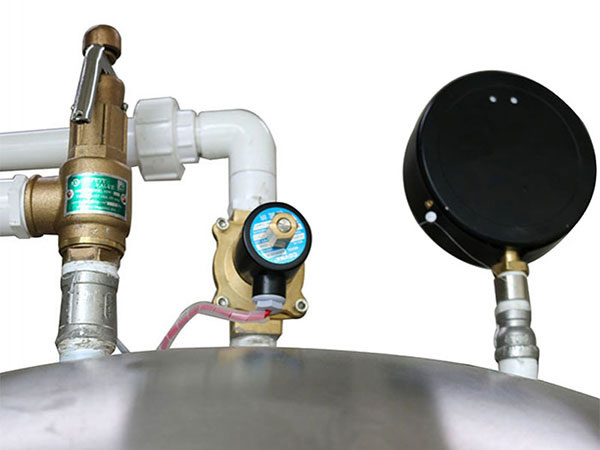

| Sistema de presión | Válvula de acero inoxidable y conversor de presión. |
| Precisión del indicador de presión | 0.25 grados, rango: 6bar. |
| Tiempo de prueba | De 0 a 99 minutos. |
| Presión máxima | 6bar. |
| Protección contra presión | Interruptor para protección contra presión. |
| Conectar al equipo de suministro de agua a través de la manguera de cable de acero de alta presión (3/4). | |
